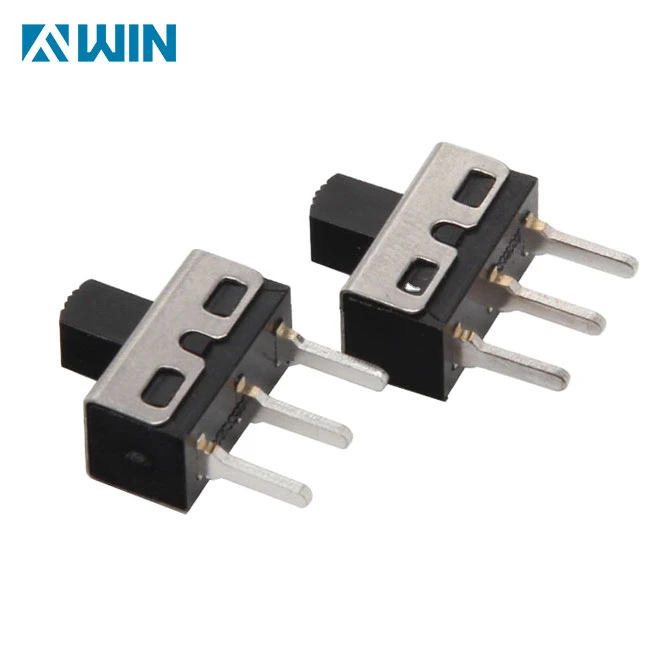

SPDT liuglüliti

A slide switch is a mechanical switch that slides from the open (off) position to the closed (on) position and allows control of a circuit's current flow without having to manually connect or cut circuit.A variety of slide switch accommodate a multitude applications,it provides the top and side actuator switches are available supplying maximum flexibility.

Liuglülitit klassifitseeritakse väikese voolu ja suure voolu liuglülititeks, mikro-liugurit kasutatakse elektroonikamänguasjade ja digitaalsete toodete jaoks ning suurt liuglülitit kasutatakse elektriseadmete ja raskete masinate jaoks.

Slide switch controls the circuit by sliding the handle to connect or break,then switch the circuit.slide switch was divided into single pole and double position,single pole three position,double pole double position and double pole three position;it's widely used to low voltage circuit,and features with flexible slide action and stable performance as well as high reliability;it's applied to various instrument and apparatus.electronics toys,audio equipment,medical equipment and beauty equipment as well as other electronics products filed.

Spetsifikatsioon

Hinnang: AC 125V 1,5A

Kontakttakistus: 100 mohm MAX (ALGNE)

Isolatsioonitakistus: 100 Moh mAT 500 VDC

Talub pinget: AC 500 V 1 MIN

Eluiga: 10,000 tsüklit (15–18 C/M mahalaadimine)

Andmed ja mõõde

Muud tooted

Pakendi üksikasjad

Stand Exported Packing for computer power switch:
inner bubble box--- inner box---carton (or by your request.)

KKK

K: Kas te toodate / tehast? Asukoht?

 A: Yes, office is located in Shenzhen , Dongguan province.

Q: What about terms of payment ?

V: T / T, L / C, Paypal, sularaha jne.

Q: Do you test all your goods before delivery?

V: Jah, meil on enne tarnimist 100-protsendiline test.

K: Kas pakute kohandatud teenuseid?
A: Yes,we support OEM/ODM service.

Kuum tags: spdt liuglüliti, Hiina, tarnijad, tootjad, tehas, kohandatud, hulgimüük, müük, valmistatud Hiinas
